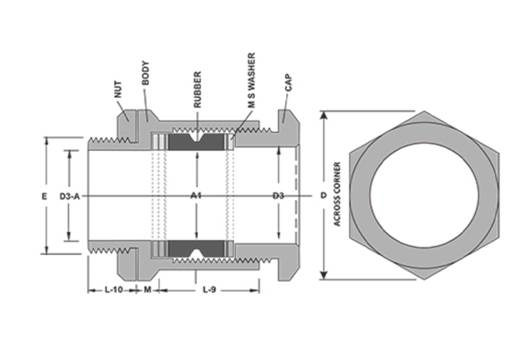

| Suitable for overall Dia (mm) | Standard Gland Size | A (DIA) M | B (DIA) M | C (DIA) M | D (DIA) M | E Nipple Entry (ET) | |
|---|---|---|---|---|---|---|---|
| From | To | ||||||
| 6.0 | 12.5 | SPSC - 3/8" | 12.5 | 11.5 | 18.0 | 20.5 | 3/8" |
| 12.5 | 14.0 | SPSC - 1/ 2" | 15.0 | 12.0 | 22.0 | 25.0 | 1/ 2" |
| 14.0 | 15.5 | SPSC - 5/8" | 16.5 | 14 .5 | 21.0 | 24.0 | 5/8" |
| 15.5 | 16.5 | SPSC - 3/4" | 17.5 | 14.5 | 23.0 | 26.0 | 3/4" |
| 16.5 | 19.0 | SPSC - 7/8" | 20.0 | 14 .5 | 25.0 | 29.0 | 7/8" |
| 19.0 | 22.0 | SPSC - 1" | 23.0 | 20.5 | 29.0 | 33.0 | 1" |
| 22.0 | 27.0 | SPSC - 11/8" | 28.0 | 24.0 | 35.0 | 40.0 | 11/8" |
| 27.0 | 31.0 | SPSC - 11/4" | 32.0 | 27.0 | 40.0 | 46.0 | 11/4" |
| 31.0 | 34.5 | SPSC - 13/8" | 35.5 | 29.5 | 44.0 | 50.0 | 13/8" |
| 34.5 | 38.5 | SPSC - 11/2" | 39.5 | 33.0 | 47.0 | 54.0 | 11/2" |
| 38.5 | 43.5 | SPSC - 13/4" | 44.5 | 40.0 | 54.0 | 62.0 | 13/4" |
| 43.5 | 50.5 | SPSC - 2" | 51.5 | 45.0 | 60.0 | 69.0 | 2" |
| 50.5 | 57.0 | SPSC - 2 1/4" | 58.0 | 51.5 | 68.0 | 78.0 | 2 1/4" |
| 57.0 | 61.5 | SPSC - 2 1/2" | 62.5 | 57.5 | 75.0 | 86.0 | 2 1/2" |
| 61.5 | 68.0 | SPSC - 2 3/4" | 69.0 | 63.5 | 80.0 | 90.0 | 2 3/4" |
